Stealth plans for “forced busing” in heavy local travel corridors may be wasteful barrier to light rail

30 March 2015

Consequences of investing in bus-based “rapid transit” (BRT) can be seen in Ottawa, where bus bunching and huge bus jams like this one reveal massive size of fleet necessary to support “rapid transit” levels of ridership — ridership far more efficiently accommodated by urban rail. Similar plans for expanded BRT infrastructure in Austin pose need for light rail transit (LRT) alternative. Photo: Flickr.

♦

By Dave Dobbs

Dave Dobbs is publisher of LightRailNow.com. This commentary has been adapted and expanded from original private Email comments.

Recent developments in local metro area transportation planning, particularly in the aftermath of last November’s ill-conceived “urban rail” bond vote debacle, have made it evident to some of us that there’s a need for a grassroots collection of stakeholders to unite behind a new urban rail planning process, and getting it started ASAP. This is more urgent than most people realize.

It’s abundantly clear that, over the past several years, Project Connect and CAMPO planners and officials have been aiming toward “forced busing” on Austin’s best potential light rail routes, the heavy local travel routes where currently the big red MetroRapid buses run — Guadalupe/North Lamar, South Congress, and South Lamar. As I pointed out in an earlier article on this issue («No urban rail on Guadalupe-Lamar? Then get ready for bus lanes…»), it’s ironic that, for the past several years, while some public officials have piously insisted we can’t possibly convert car travel lanes to reserved rail lanes on Guadalupe/North Lamar, it seems that all along, since at least 2012, this has been in planning for MetroRapid — in effect, a “stealth” plan for incremental BRT.

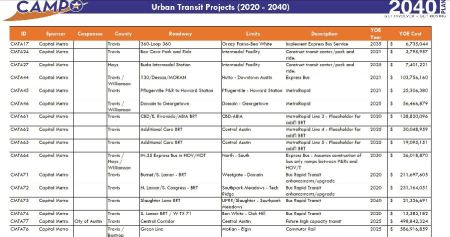

Light rail/urban rail has simply vanished from CAMPO's 2040 Transportation Plan. Screenshot of Urban Transit page: ARN.

CAMPO 2040 plan includes hundreds of millions of dollars in proposed “BRT” projects, including plans to construct dedicated lanes in Guadalupe-Lamar corridor in lieu of light rail. Screenshot of Urban Transit page: ARN. (Click to enlarge.)

If, this coming May, the CAMPO 2040 plan is adopted with the Urban Transit Projects (2020 – 2040) currently in the plan, Capital Metro, perhaps together with the City, will have the green light to immediately pursue federal funding for concrete bus lanes on the above thoroughfares. And they will no doubt do so, as the 80% federal matching funds for buses are far more available than 50% federal matching funds for rail. Yet, even with the heavier federal proportion, this would be a disastrous waste in the longer term, since the ridership attractiveness, cost efficiency, more livable urban environment, stimulus for transit oriented development (TOD) and economic development, and other benefits for the community, far outweigh the advantage of a higher rate of federal bus system funding.

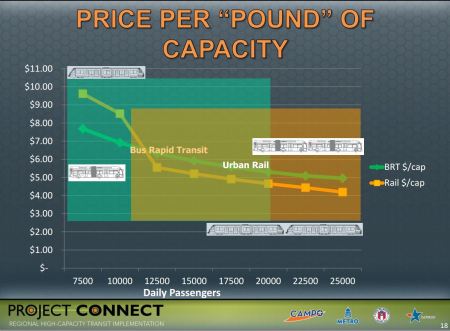

Total cost per passenger of urban rail becomes lower than "bus rapid transit" as ridership rises above about 10,000 per day. Graph: Project Connect.

Project Connect graph, presented in June 2012 to Transit Working Group, showed greater cost-effectiveness of urban rail (LRT) compared with BRT, as ridership increases. Screenshot: ARN. (Click to enlarge.)

We should expect that the MetroRapid bus lane process will be similar to the Project Connect rail public process — i.e., art gallery open houses, boards and commission hearings and approvals, and finally, council and Capital Metro board approval … but no general public vote, because the the local 20% match will be small enough to construct discrete sections and can probably be found in a slush fund someplace. While 20% of the overall $442,861,656 Capital Metro has identified for dedicated MetroRapid bus lanes is around $88.6 million, it’s logical to expect a piecemeal approach, one section at a time, so as to avoid a citywide response over the loss of vehicle travel lanes. Divide and conquer.

For example, after having paint-striped a little over a mile of Guadalupe and Lavaca between Cesar Chavez and MLK, the most likely next step is to convert two vehicle travel lanes on Guadalupe from MLK to the Triangle (North Lamar at Guadalupe), a distance of 2.5 miles, for about $60 million. Of this, Austin’s share would be roughly $12 million, small enough to be found in current budget funds without going to the voters. Perhaps an even shorter segment, 1.5 miles to 38th Street, would be considered, where the local share would be only about $7 million.

While the downtown Guadalupe/Lavaca paint striping cost $270,000/mile, the dedicated lanes called for in the CAMPO 2040 plan are tear-up-the-street, fix-utilities, and pour 18 inches of concrete (very much like installing light-rail-dedicated reserved lanes) and cost about $24 million/mile for a lane in each direction. Of course, once the bus lanes are in, we couldn’t change our minds because (1) we’ll have spent a lot of federal dollars, and switching over to rail anytime soon would not get a hearing from the Federal Transit Administration (FTA), and (2) merchants and residents are not going to easily, willingly, or peacefully suffer urban street surgery twice. Currently the $38 million in Federal grants for MetroRapid in mixed traffic is mostly portable to another corridor (like Riverside, where it would be appropriate), and after seven years, buses are mostly amortized in the eyes of the FTA. Exclusive bus lanes at $350 million is another matter entirely, for something that can’t be moved.

Construction for dedicated bus lanes, rarely shown by “BRT” promoters, is very similar to that for LRT, as this example from San Bernardino demonstrates. Yet effective capacity, ridership attraction, cost-effectiveness, TOD, and other benefits typically fall short of what LRT achieves. Photo: Omnitrans.org. (Click to enlarge.)

Proceeding with major investment in bus infrastructure in Guadalupe-Lamar and other high-travel local corridors is a huge mistake. As I warned in the earlier article cited above, if you would prefer urban rail instead of a major dedicated bus lane project in Guadalupe-Lamar, “it’s essential to speak up and act. Let neighborhood groups and other community organizations know what official plans have in store for this corridor.” It’s also important to communicate to local agencies involved with planning and members of the Austin City Council “that you want to ride urban rail on Guadalupe-Lamar, running in reserved tracks, not just a souped-up bus service weaving in and out of special lanes.” ■

Posted in Austin urban rail issues, Bus rapid transit (BRT), Bus upgraded transit (BUT), CAMPO issues, Dave Dobbs's postings, MetroRapid bus service, Regional planning issues | Tagged austin urban rail, bus rapid transit, bus upgraded transit, campo, federal transit administration, Lamar-Guadalupe, metrorapid bus, regional planning, reserved lanes | 3 Comments »

Project Connect’s $500 million plan for bus infrastructure — The Elephant in the Road on Guadalupe-Lamar that could block urban rail

21 June 2014

Graphic: Panoramio.com

♦

As this blog has been warning, there’s substantial evidence that the Project Connect consortium has plans in mind for major investments in bus infrastructure for the MetroRapid bus routes, including Guadalupe-Lamar — infrastructure that would have the effect of a de facto barrier to installing urban rail.

From various recent statements by local officials, Project Connect personnel, and supporters of their current Highland-Riverside urban rail plan, it also seems likely that such a so-called “Bus Rapid Transit” (BRT) infrastructure program for Guadalupe-Lamar would be initiated if their rail proposal receives public approval. Thus, our predictive analysis that “a vote for Project Connect’s Highland-Riverside urban rail project is a vote for a bus project on Guadalupe Lamar.” In effect, this is the Elephant in the Road shadowing all the debate over Project Connect’s Highland-Riverside urban rail proposal.

Context of cumulative evidence

The evidence for this is hard to miss. For example:

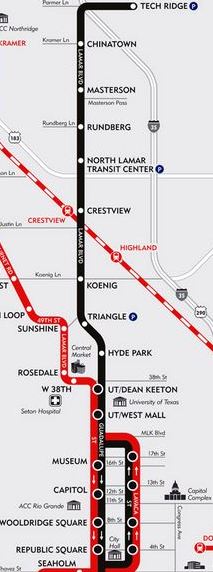

• Project Connect’s stated plans — As our article No urban rail on Guadalupe-Lamar? Then get ready for bus lanes… has previously reported, in a PowerPoint presentation to the 25 May 2012 meeting of the Transit Working Group (TWG), the Project Connect team envisioned a “Preferred System Phase 1” program of projects, to be implemented within “0 to 10 years”, that included $500 million (2012 dollars) targeted for the MetroRapid “BRT” system then under development in four major corridors (and now in operation in the Guadalupe-Lamar and South Congress corridors). This half-billion-dollar investment would include covering the “Cost of 40%-50% dedicated lanes”.

Excerpt from Project Connect presentation in May 2012 indicating planned $500 million package for MetroRapid “BRT” facilities, including Guadalupe-Lamar. Graphic: Project Connect, with annotations by Dave Dobbs.

This was proposed in the context of Project Connect’s plan for urban rail (aka light rail transit, LRT) to serve UT’s East Campus, Red River, and Hancock Center, and at that time, the Mueller site … plus a clear rejection of proposals by Lyndon Henry, Dave Dobbs, Andrew Clements, and others that the Guadalupe-Lamar (G-L) corridor had far more potential for an urban rail starter line. (The line to Mueller has, at least for now, been replaced by a proposed line to the former Highland Mall site.) So, in effect, even then, Project Connect envisioned a somewhat beefed-up, more heavily invested version of what they called “BRT” as the mode of “high-capacity transit” planned for Guadalupe-Lamar well into the future.

• Framing MetroRapid as an obstacle — Starting in the spring of 2012, Project Connect representatives and members of the Transit Working Group began portraying the Small Starts MetroRapid project as a “bus rapid transit” replacement for urban rail in Guadalupe-Lamar, and thus an obstacle to any urban rail alternative in the corridor. Moreover, it was hinted that any effort to switch from MetroRapid to urban rail would sour Austin’s relationship with the FTA and jeopardize future funding for any projects of any mode in the Austin area.

Supporters of urban rail for the G-L corridor have responded that not only was the FTA investment — and the project itself — very minimal, but MetroRapid was originally intended, and should be regarded as, a precursor to urban rail in the corridor, not a barrier. See:

• MetroRapid bus service should be a precursor to urban rail, not an obstacle!

• Why the MetroRapid bus project currently is NOT an obstacle to urban rail in Guadalupe-Lamar

• Why MetroRapid bus service is NOT “bus rapid transit”.

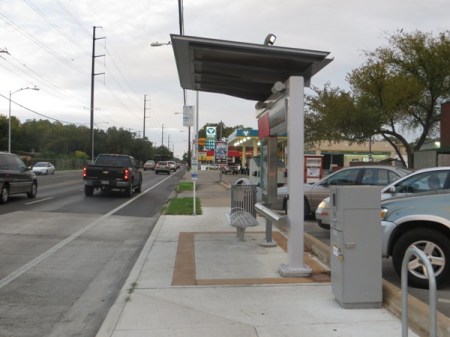

MetroRapid bus stops are currently designed to be modular and movable, and could be relocated to other routes or to use by urban rail. But civic officials and Project Connect representatives portray MetroRapid bus service as “permanent” form of “rapid transit” that “blocks” urban rail. Photo: L. Henry.

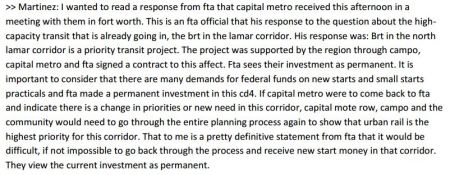

Nevertheless, in the spring of 2012, national transportation legal and policy consultant Jeff Boothe was hired by the city to reinforce the offical argument. In various public statements, including a presentation to a City Council work session on 22 May 2012, Boothe claimed that the minimalist Small Starts MetroRapid bus service would pose a daunting barrier to urban rail on Guadalupe and Lamar for decades. Asked by Councilman Bill Spelman how long this supposedly “BRT” operation would need to run in the corridor before urban rail could be substituted, Booth claimed “At least a minimum of 20 years. . . .That is FTA’s expectation.” (This assertion has subsequently been debunked; see, for example, Contradicting local official claims, FTA says it “would consider request” for urban rail on North Lamar.)

This theme continued in the fall of 2013 as Project Connect representatives Kyle Keahey, Linda Watson, and others portrayed the MetroRapid project as an obstacle, particularly citing the FTA’s “commitment” to “BRT” in this corridor. During the crucial final decisions by the Central Corridor Advisory Group (CCAG) and Austin City Council leading to an endorsement of Project Connect’s “Highland-Riverside” recommendation, the same argument was repeatedly brandished prominently by public officials such as Mayor Lee Leffingwell, Councilman Bill Spelman, Capital Metro Chairman Mike Martinez, and Capital Metro board member John Langmore as a compelling reason to rule out urban rail for the Guadalupe-Lamar corridor.

While these specious claims of the “permanence” of “BRT” in this corridor, and the supposed intransigence of the FTA, in themselves don’t explicitly include detailed plans to install a G-L “BRT” infrastructure, they certainly bolster a strong suspicion of intent to proceed with the $500 million program already announced by Project Connect.

• Public statements — Not only have officials, Project Connect representatives, and supporters of their program made it clear that they see MetroRapid “BRT” as the “rapid transit” system “permanently” allocated to Guadalupe-Lamar, but Project Connect representatives have also indicated intent to install more substantial infrastructure for this operation. For example, at a Project Connect “Data Dig” on 3 December 2013, team representatives acknowledged that MetroRapid, running almost entirely in mixed traffic, fell short of “rapid transit”. In response, Project Connect staff assured participants that “dedicated lanes” were among the measures being considered to speed MetroRapid buses in the corridor.

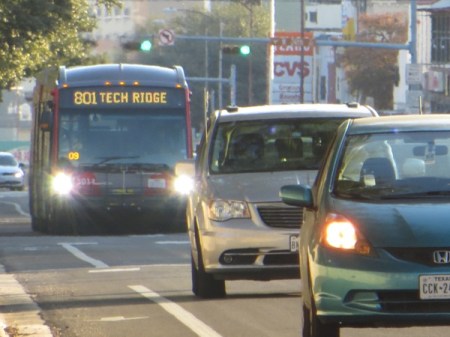

MetroRapid buses running in mixed traffic are portrayed as central Austin's "rapid transit" — but this has become local joke. Photo: L. Henry.

MetroRapid buses running in mixed traffic are portrayed as central Austin’s “rapid transit” — but this has become a target of local jokes. Photo: L. Henry.

In the context of a proposed $500 million “dedicated lane” program, it’s extremely unlikely that mere paint-striping of transit lanes is what’s under consideration here. Technical issues of operational needs, safety, and other factors, plus “Best Practices” in the industry, all strongly point to a much more robust infrastructure investment than mere paint-striping to render a safe, efficient dedicated-lane facility.

And in the context of repeated affirmations of “commitment” to “BRT” in the G-L corridor, it’s entirely reasonable to expect that any further MetroRapid-related investments — even paint-striped lanes — would be regarded as a further reinforcement of the “permanence” of “BRT” in this corridor.

• “North Corridor BRT” integration — Project Connect has concocted a “regional” plan for the so-called “North Corridor” (in effect, a vast sector with multiple travel corridors located north of the core city) that consists almost entirely of bus operations, including “BRT”. In various presentations, Project Connect representatives such as Kyle Keahey have indicated that this “North Corridor BRT” system would connect neatly with “high-capacity transit” in the Guadalupe-Lamar corridor.

Project Connect’s North Corridor plan includes “BRT” extensions of MetroRapid (shown in green) into northern suburbs. Map: Project Connect.

While no explicit proposals for specific facilities have been presented publicly, it seems reasonable to infer that, within the previously described context, this plan for a northern “BRT” connection would encourage and bolster the “Preferred System Phase 1” vision for “40%-50% dedicated lanes” in the G-L corridor.

Concrete vs. painted lanes

But if merely paint-striping reserved lanes on Lavaca and Guadalupe Streets downtown is adequate there, why can’t this be applied north of downtown, through the Drag, and on north, up Guadalupe and North Lamar?

The answer is that there’s a qualitative difference between separating slower-moving, congested downtown street traffic from bus lanes, and separating dedicated lanes designed for buses traveling 35-45 mph. As we’ve already noted, operational features (such as providing for general traffic turning movements), right-of-way constraints, and safety considerations virtually mandate much “more robust” — and thus expensive — facilities, not just striped-off lanes. In addition, heavy bus use typically requires construction of reinforced paveways for the running lanes.

All that implies pouring concrete and asphalt, not just brushing stripes with paint. And as we’ve also noted, given recent history, virtually any further capital improvements — no matter how minimal — for MetroRapid will be used to reinforce the contentions of a faction of Austin’s civic leadership that MetroRapid is too “permanent” to be relocated to permit the installation of urban rail.

Reinforced paveway on San Bernardino’s sbX “BRT” Green Line shows that adequately “dedicated” bus lanes require more than just paint striping. Photo: TTC Inland Empire blog.

“BRT” funding and implementation options

Some skeptics question how Project Connect’s $500 million project for partially “dedicated lanes” on Guadalupe and Lamar would be funded and implemented. Austin Rail Now suggests it would probably be done incrementally, perhaps in route segments, rather than implemented as a single large program. And, besides possible right-of-way acquisition, it might involve an array of bus-traffic-related measures, from demarcated and reinforced running lanes, fully new paveways, reversible center bus lanes, queue-jumper lanes, and other options. But in any case, it would involve a substantial overhaul of these major arterials.

FTA Section 5307 or 5309 funds might cover 80%, with the local 20% share coming perhaps from a variety of sources, such as the quarter-cent contractual transfer from Capital Metro to the City of Austin (COA); COA funds possibly remaining for non-specific mobility improvements in North Lamar and Guadalupe; and even COA’s ongoing public works maintenance budget. Project segments and funding allocations could be added to CAMPO’s annual Transportation Improvement Program as Project Connect is ready to proceed with them.

However the details might materialize, Austin Rail Now is convinced that the preponderance of the evidence overwhelmingly points to desires and intentions on the part of the city administration and Project Connect to pursue this kind of massive program to “permanentize” MetroRapid “BRT” facilities in the Guadalupe-Lamar corridor — and that these facilities would effectively reinforce official contentions that urban rail is blocked as an option. Thus, we underscore our warning that a vote for Project Connect’s urban rail plan is also a vote to institute major bus infrastructure as an impediment to urban rail on Guadalupe-Lamar. ■

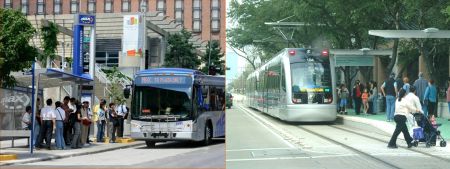

Passenger stations of Kansas City’s MAX “BRT” (left) and Houston’s MetroRail LRT (right) illustrate significant design differences between bus and LRT facilities. Thus major infrastructure, from running ways to stations, installed for “BRT” must be removed or reconstructed for LRT — a substantial expense and thus obstacle to rail. Photos: ARN library.

Posted in Bus rapid transit (BRT), Bus upgraded transit (BUT), Design and cost issues, Light rail transit (LRT), MetroRapid bus service, Project Connect planning issues, Urban Rail | 1 Comment »

SXSW transit — MetroRail trains attracted crowds, excitement! MetroRapid buses? Nyah…

18 March 2014

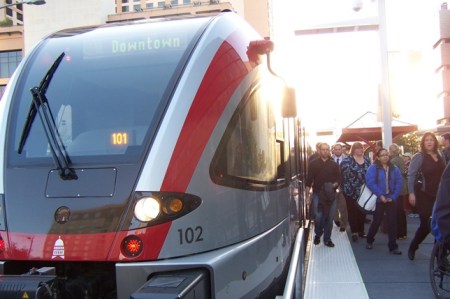

Commuting passengers deboard a MetroRail train. During SXSW, passengers have jammed onto trains, setting new ridership records. Photo: L. Henry.

♦

For at least most of the past year, as this blog has been noting, Project Connect has gradually shifted away from promoting “urban rail” (light rail transit, LRT) and more into emphasizing the delights of an abstract, amorphous mode of travel they’re calling “high-capacity transit”, which can supposedly range from dressed-up buses running in mixed traffic (MetroRapid) to actual high-capacity trains or railcars running on tracks.

In Project Connect’s schema, the impression is conveyed that it’s all the same — rubber-tired buses running on the street, or trains running on tracks, either will do the same basic job. So, for the Guadalupe-Lamar (G-L) corridor, where Capital Metro launched the first MetroRapid route this past January, the new bus service has been christened “bus rapid transit” (BRT).

This has occurred in the midst of Project Connect’s jaw-dropping campaign to forsake the City of Austin’s long-standing commitments of urban rail for core neighborhoods and commercial activities along the heavy-traffic Guadalupe-Lamar and the high-density West Campus, in favor of serving the much weaker East Riverside area and a virtually non-existent “corridor” connecting downtown, the relatively backwater East Campus, Hancock Center, and the old Highland Mall site (now becoming a major ACC campus). Curiously, more than half of the “Highland” route replicates the previous Mueller route that had already sparked enough controversy to force Project Connect to embark on its “study” charade last summer.

As the debate heated up over Project Connect’s very dubious “study” and subsequent decision to proceed with the Riverside-Highland route, neighborhood residents and other supporters of the G-L route found themselves repeatedly lectured that they should be satisifed with the spiffy new MetroRapid bus service they were getting — just like rail, but cheaper, it was implied. And in any case, these buses are so “permanent”, you can just forget any urban rail for decades, so just take it and accept it.

Meanwhile, after launching MetroRapid bus (accompanied by a rather low-key ceremony with invited guests) in late January, CapMetro encountered a swarm of new problems, mainly (1) widespread passenger irritation over the disruption and degradation of previous bus service in the corridor, (2) complaints over the tendency of MetroRapid buses (with no fixed schedule. but supposedly about 10 minutes apart at peak) to bunch up (leaving many passengers waiting 20 minutes), and (3) a decidedly unexcited public reception of the new service — prompting CapMetro to issue a steady stream of marketing pitches on Twitter and in other media attempting to persuade the public to try the service. And despite CapMetro’s hoopla, the fact remains that MetroRapid buses run almost entirely in mixed traffic, often congested, and it’s arguable that the actual level of service has been degraded, not improved. (Also see: Is Capital Metro’s New MetroRapid Service Leaving Bus Riders Behind?)

MetroRapid bus at a stop on the Drag. Passengers have not crowded aboard the new service as they have on MetroRail. Photo: L. Henry.

… Which brings us to Austin’s famous South by Southwest (SXSW) annual extravaganza March 7th-16th in the city’s core area. With a daunting array of street closures and street-fair-style activities, local transportation officials’ efforts to encourage people to leave their cars elsewhere and ride transit are virtually a no-brainer. And, by Project Connect’s schema, besides regular buses, visitors have had two major choices in “high-capacity transit” to choose from in getting downtown: the brand-new, MetroRapid service with its spiffy-looking, red-and-grey articulated (“bendy”) buses, and MetroRail, CapMetro’s “commuter” light railway with its large, comfortable, smooth-riding railcars, now in their fourth year of service.

The choices that SXSW transit riders have made, the object of media attention and other indications of public excitement, and reports from CapMetro via Twitter and other media have spoken volumes about what kind of “high-capacity transit” mode — rail or MetroRapid bus — generates real excitement and is most preferred by the public. And it ain’t MetroRapid bus.

Overwhelmingly, it’s been CapMetro’s MetroRail rail transit trains that have been crowded with passengers, and it’s been MetroRail that has gotten nearly all the focus of favorable news coverage and other attention. And that should give you some idea of why so many neighborhoods, UT students, and others along the G-L corridor are clamoring for urban rail, not a faux “bus rapid transit” substitute, to provide the high-quality transit service they need.

Typical of news coverage during SXSW was a KXAN-TV report Web-posted with the headline “Additional road closures during SXSW push more people to take MetroRail”.

“During South by Southwest, traffic jams are not unusual…” observed the reporter. “But for those who live here, trying to get to and from work can be even more frustrating than usual.”

One commuter, Shermayne Crawford, told the reporter: “I drove to work Monday and I think it took me an hour and a half to get home.” Because of that, explained the reporter, “She decided she would be using MetroRail for the rest of the week.”

“It’s worth taking it. It moves fast…” said Crawford. “It’s a little packed this week but overall I’ve been able to get a seat and enjoy myself on my way to work.”

According to a report by KUT-FM radio, MetroRail has been experiencing record ridership during the festival, with boardings “up from last year by almost 7,000” just in “the first several days” according to CapMetro. .

Capital Metro even had to operate an additional train after hours to carry more than 100 passengers still waiting on the platform. The trains on Saturday are starting at 10 a.m. – a few hours earlier than usual.

Perhaps nothing better highlights the enthusiasm of SXSW visitors for MetroRail’s train service than CapMetro’s own announcements and news bulletins. For example, on its website the agency posted:

Extended MetroRail Service
We know MetroRail is popular for traveling downtown during SXSW. We’re expanding our regular MetroRail service to help ease congestion:

Extra service on Saturday, March 8 and 15 (10 a.m. – 2 a.m.)
Additional trips all day, March 10-14
Monday – Tuesday, March 10-11: 6 a.m. – 7 p.m.
Wednesday – Thursday, March 12-13: 6 a.m. – 12:30 a.m.
Friday, March 14: 6 a.m. – 1 a.m.

Friday & Monday, March 7 & 17 – Regular schedule
No MetroRail service on Sunday, March 9 & 16
See the extended schedule tables below for exact times.
Our train is popular, so expect some crowding onboard. What can you do if the train’s full?

Cyclists encouraged to use at-station bike racks
Check our Trip Planner or station signage for alternative routes downtown, many bus routes accessible within a few blocks

As the crush of passengers on the trains grew, in some cases causing delays, CapMetro labored to keep riders informed and assured that the service was being maintained, via an avalanche of nearly frenzied Twitter news feeds. Here’s just a small sampling from the past several days:

Capital Metro ‏@CapMetroATX 19h
It’s 2 AM & you still have one more chance to ride the #MetroRail during #SXSW. Last Northbound train from Downtown Station departs at 2:19.

Capital Metro ‏@CapMetroATX 20h
MetroRail experiencing delays of approx. 20-25 mins. due to overcrowding & operating additional trains. Trains at capacity. #MetroRailAlert

Capital Metro ‏@CapMetroATX 21h
Though the clock has hit midnight, #MetroRail is still going strong. Last Northbound train from the Downtown Station is at 2:19 AM.

Capital Metro ‏@CapMetroATX 21h
MetroRail experiencing delays of approx. 15-20 mins. due to overcrowding & operating additional trains. Trains at capacity. #MetroRailAlert

Capital Metro ‏@CapMetroATX 22h
MetroRail currently experiencing delays of approximately 10-15 minutes due to overcrowding & operating additional trains. #MetroRailAlert

Capital Metro ‏@CapMetroATX 25h
MetroRail is currently experiencing delays of 15-20 minutes due to overcrowding. #MetroRailAlert

Capital Metro ‏@CapMetroATX 26h
MetroRail experiencing delays of approximately 10-12 minutes due to overcrowding & operating additional trains. #MetroRailAlert

Capital Metro ‏@CapMetroATX 28h
Be aware: Trains have been packed this #SXSW! It’s a great way to get around, but expect crowds and possible waits at platforms all day.

Capital Metro ‏@CapMetroATX Mar 15
Parking and riding? Temp. #SXSW MetroRail parking available at Kramer at City Electric Supply on 2540 Brockton Dr.

Capital Metro ‏@CapMetroATX Mar 15
Rail riders: MetroRail frequency being bumped up, service every 34 mins ALL DAY this SXSW Saturday to ease crowds: http://bit.ly/1lFtEH4

Capital Metro ‏@CapMetroATX Mar 15
MetroRail is running on a 15-20 min. delay at this time. Thanks for your patience. #MetroRailAlert

Capital Metro ‏@CapMetroATX Mar 15
MetroRail is currently operating on a 15-20 min. delay due to overcrowding. #MetroRailAlert

Capital Metro ‏@CapMetroATX Mar 15
MetroRail is currently operating on a 15 min. delay due to overcrowding. #MetroRailAlert

Capital Metro ‏@CapMetroATX Mar 15
FRI 3/14: See tonight’s MetroRail schedules here: http://www.capmetro.org/sxsw.aspx?id=3262#scheduletables …. #MetroRailAlert ^AP

Capital Metro ‏@CapMetroATX Mar 14
MetroRail is experiencing 15 min delays due to crowds and running an extra train. #MetroRailAlert

To be fair, CapMetro’s buses have also seen strong ridership. As the above-cited KUT report recounts,

The bus service has also been popular. Capital Metro could not provide preliminary figures on ridership, but the transit company says many buses have been at full capacity.

However, next to no mention of the previously much-vaunted MetroRapid bus service. That new “bus rapid transit” operation? No reports of crowding, no extra service rollout, no media excitement. No frenzy of Twitter feeds or other media messages from CapMetro.

It’s trains, not dressy buses, that have drawn the crowds aboard and captured news media attention.

Keep in mind, however, that urban rail — using electric light rail transit trains — would be vastly superior even to MetroRail’s diesel-powered service. Instead of MetroRail’s circuitous “dogleg” around the heart of Austin and into lower downtown, urban rail trains would ride straight down Lamar and Guadalupe, able to make more stops and offer faster service because of their electric-powered acceleration. And they’d also be cheaper to operate.

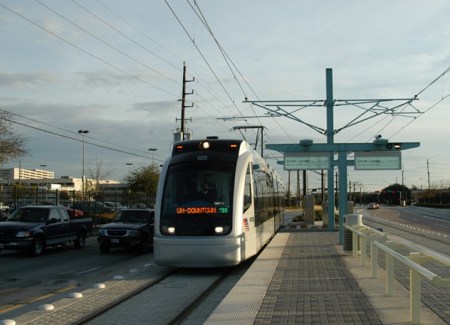

As in this example from Houston’s light rail system, urban rail would be powered by electricity and operate mainly in the street — in Austin’s case, Guadalupe and Lamar. Photo: Peter Ehrlich.

However, MetroRail at least gives a taste of the advantages of rail transit. And the SXSW experience has provided a de facto “test case” of MetroRail and MetroRapid bus running more or less “head-to-head”, providing somewhat “parallel” transit service opportunities. And it certainly looks like the one rolling with steel wheels on steel rails wins.

That should give a clue as to why supporters of urban rail for Guadalupe-Lamar are far from satisified with being given a bus “rapid transit” substitute for bona fide LRT. One would hope that Project Connect, CapMetro, and City of Austin officials and transportation planners would get the message.

But even if they don’t, maybe Austin voters will.

Posted in Alternative Urban Rail Plan, Bus rapid transit (BRT), Bus upgraded transit (BUT), Guadalupe-Lamar corridor, Light rail transit (LRT), MetroRapid bus service, SXSW issues, Urban Rail | Tagged alternative plan, Austin Texas, bus rapid transit, bus upgraded transit, capital metro, Lamar-Guadalupe, light rail transit, metrorapid bus, Project Connect, sxsw, urban rail | Leave a Comment »

Science seems missing from Project Connect’s “scientific” transit planning

10 February 2014

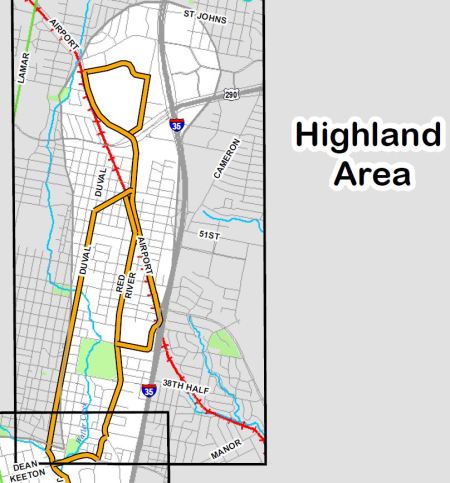

Project Connect’s proposed “high-capacity transit” alternative alignments for “Highland” sector.

♦

By Lyndon Henry

This past Saturday, Feb, 8th, I attended Project Connect’s “interactive workshop” event at the Highland ACC site with a specific mission in mind: raising questions to gather information and data. I particularly wanted to refrain from actually providing input into the process, because Project Connect seems to use this type of public feedback as evidence of popular validation of, and acquiescence to, their overall process, methods, and conclusions — and I wanted to avoid that as much as possible. I did strongly encourage other supporters of the Guadalupe-Lamar alignment proposed for urban rail to attend this event if at all possible.

The most recent documents on the topic of the event, as far as I knew, were the “alternative route” maps that Project Connect had made available online, as a PDF:

http://www.projectconnect.com/connect/sites/default/files/Preliminary%20Alternatives.pdf

Through Project Connect’s presentations to the Transit Working Group and Central Corridor Advisory Group, and in other presentations and statements here and there, a multitude of questions had already been raised, and these maps raised even more issues. Much of my curiosity was motivated by unanswered questions associated with the “Phase 1” study process — supposedly a thoroughly “data-driven” study. Indeed, City Councilman (and Capital Metro chairman) Mike Martinez has emphasized that the route profiles selected by the Project Connect team are all based on a highly “scientific” process. So, in my view, it’s entirely valid to seek the “scientific” evidence that supposedly underpins the route alignment choices now being presented for public perusal.

At the Feb. 8th event, I didn’t have an opportunity to raise all my questions or obtain definitive answers to the ones I did raise, but I’m sharing much of what I did learn in this post. I’ll note that I mainly discussed these with a couple of volunteer Project Connect table moderators, and a couple of Project Connect consultants. I’ve categorized these questions into several sub-issues.

“Highland” issues

• The “Phase 1” study projected huge increases in population and economic activity in this sector by 2030. Where, exactly, would these increases occur?

Basically, the Project Connect representatives I discussed this with didn’t have an answer. They’re planning “high-capacity transit” routes on the basis of projections of enormous population and economic growth, but they seemed somewhat confused about whether there was any data indicating exactly where in this sector such growth would occur.

So, how could station locations be determined if you don’t know where the heaviest growth will be? Is there huge growth projected west of Red River, along the proposed Duval alignment? They couldn’t say.

• Do the proposed alignment alternatives take the actual locations of population and economic concentration into account? If so, how?

Basically, no — for the same reason as with the previous response.

However, I did overhear one of the consultants explain to another participant (who favored an alignment to the Mueller development area) that Project Connect was giving “major consideration” to the possibility that an alignment serving Hancock Center would “set you up” for an ultimate extension to Mueller.

• Of the routes within the “Highland” sector from the UT campus to Highland/ACC, I-35 is omitted. Yet heavy traffic on I-35 was included as a major factor in swaying the Phase 1 recommendation for this sector. So, why is this major travel artery not included as a possible “high-capacity transit” (HCT) alignment for this sector? Where’s the metrics-based evaluation to eliminate it?

The impression I got from discussing this is that there’s no “metrics-based” evaluation, just a sort of hunch that an alignment in or along I-35 would not be a good idea. So, if traffic volumes on I-35 were a major factor in selecting the “Highland” route, are there any park & ride sites in mind? I was told that the Highland/ACC site would be an excellent location for a P&R facility — and that seems a quite reasonable judgement.

However, there’s been no study of the relative attractiveness of such a P&R to I-35 motorists between access to the UT and core area via the eastern “Highland” routes or the more direct, western route via Lamar and Guadalupe.

• Duval and Red River are both capacity-constricted minor thoroughfares narrowing into 2-lane neighborhood streets. Are these routes appropriate for the mainline of a HCT service, particularly an urban rail alignment?

Project Connect is seriously considering rail on these streets, but other than that confirmation, I couldn’t get any evaluatory comments. One participant mentioned a possible streetcar-type alignment, and another argued that these were “three-lane” streets, which is hard to believe from the visual evidence. (To procure a third lane, you’d have to eliminate neighborhood street parking on Red River and bike lanes on Duval.)

Both Red River (left) and Duval (right) are narrow 2-lane neighborhood streets, with barely space for local parking on Red River and bike lanes on Duval. L. Henry screenshot from Google Maps streetview.

I mentioned that “HCT” by Project Connect’s definition could mean MetroRapid bus service, but I was assured that, for reasons not explained, they have rail in mind for this route.

• To install HCT in these alignments, are property acquisitions for right-of-way (ROW) being considered?

I couldn’t get a clear answer on this.

• For these alignments, are elevated or subway alignments under consideration for urban rail? In the case of a subway, where would the portal be located (this generally takes most of a city block)?

Elevated and subway construction seems to be under consideration only in a very general way; I got the definite impression that Project Connect’s thinking is focused more on a surface alignment. I didn’t have a chance to raise the portal issue.

• Where would a storage-maintenance-operations site for rolling stock be located?

I didn’t have a chance to raise this issue. (Previous urban rail planning tended to locate an SMO facility on the Mueller site, or just north of it.)

• For the alignments along Airport Blvd., wouldn’t these duplicate MetroRail service?

A consultant explained that Project Connect doesn’t see duplication, because the HCT service (whatever it is) would have intermediate stops, unlike MetroRail. Apparently, in their minds, you only have duplication if you duplicate all or most of the parallel line’s stations. I found it rather peculiar that Project Connect planners would regard it as impermissible to replace MetroRapid bus service on Guadalupe-Lamar with urban rail, but quite acceptable to in effect duplicate rail transit service along Airport Blvd. with, possibly, another form of rail transit.

• Is Project Connect planning to replace a segment of MetroRail service with urban rail? If so, how would MetroRail connect from downtown to Crestview?

Apparently they’re not planning to replace MetroRail with urban rail in this phase of planning.

• If Project Connect is planning on FTA funding for urban rail, would this be possible with a line paralleling existing MetroRail service?

As discussed above, Project Connect doesn’t consider such a route along Airport Blvd. as duplicate service to MetroRail. I doubt, however, that — in the case of a major rail investment — the Federal Transit Administration (FTA) would readily agree with this, especially after their recent award of a TIGER grant to upgrade the MetroRail line.

Core area issues

• Various routes are proposed through the core area. On what specific core area metrics analyses are these based?

Project Connect representatives were somewhat confused by this question about core area metrics. Having followed the “Phase 1” HCT study process closely, I never saw evidence of any metrics-focused study of the core area (Core “sub-corridor”, i.e., sector). One consultant offered the University of Texas’s campus plan as a factor in the decision to follow the East Campus alignment along San Jacinto, but I explained that a plan is more like a wishlist, not a metrics-based analysis. I was told that maybe there was some kind of comparison of ridership, cost, etc. between the eastside and westside (Drag/West Campus) alignments, but nobody could produce one.

• Was a data-driven analysis of various alignments, evaluating ridership potential, cost, etc., ever performed for alternative routes through the core area?

Apparently there has been no metrics-based analysis that would guide alignments within the core area. Project Connect basically is taking major activity centers, such as the planned medical school, into account — but this is more based on whim rather than a “scientific” analysis evaluating data-based metrics.

• Was any kind of data-driven analysis of projected demographics, economic activity, etc., ever performed on the core area in the “Phase 1” study?

No, per the answer to the previous question.

• On what “scientific” data metrics-based rationale is the Drag excluded as an alignment through the core area?

Apparently none.

• On what data-driven basis is the crosstown alignment on 4th and 3rd Streets included?

I didn’t have a chance to raise this issue.

“East Riverside” issues

• The “Phase 1” study projected huge increases in population and economic activity in this sector by 2030. Where, exactly, would these increases occur?

As with the responses to similar questions in regard to “Highland” there seems to be no data for this.

• Do the proposed alignment alternatives take the actual locations of population and economic concentration into account? If so, how?

Again, apparently not, as with the previous responses. It would seem that much of the placement of alternatives is based on hunch and whim rather than a “scientific” evaluation of data elements.

• Why have other major potential alignments through this sector, such as Oltorf St., Congress Ave., and S. Lakeshore Blvd., been excluded? All of these were included in the original “ERC” sector in the “Phase 1” study. Is there data-based evidence for singling out East Riverside as the sole alignment?

Again, no one could explain this.

• Project Connect has repeatedly referred to MetroRapid, with buses running in normal general road traffic, as “high-capacity transit”. Why, then, are bridge options being considered for the “East Riverside” area? Could these buses not use existing traffic bridges?

Bridges are being considered for urban rail or possibly special bus-only use. But representatives agreed that, if MetroRapid is HCT, you could have Project Connect’s definition of “rapid transit” fulfilled by running MetroRapid buses in mixed traffic over existing bridges.

Posted in Bus rapid transit (BRT), Bus upgraded transit (BUT), Light rail transit (LRT), Lyndon Henry's postings, MetroRapid bus service, Project Connect planning issues, Public involvement process, Regional planning issues, Transit priority lanes, Urban Rail | Tagged Austin Texas, bus rapid transit, bus upgraded transit, Drag, federal transit administration, Lamar-Guadalupe, light rail transit, metrorapid bus, open house, Project Connect, public involvement, regional planning, urban rail | Leave a Comment »

Viewpoint: Community action must clean up public agencies’ transportation planning mess

1 February 2014

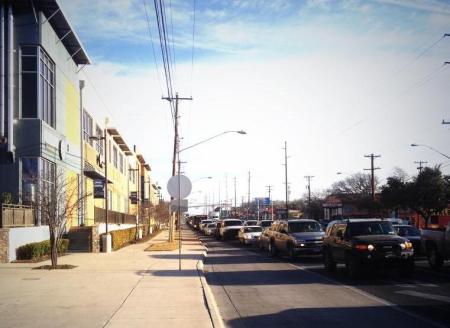

Traffic congestion on North Lamar on morning of Jan. 27th, first day of full MetroRapid service. MetroRapid “rapid transit” bus can be seen in far distance at rear of traffic queue. Photo: Steve Knapp.

♦

By Mary Rudig

Mary Rudig is a Gracy Woods Neighborhood Association coach and editor of the North Austin Community Newsletter.

♦

While I honestly don’t think it’s intentional, what I see in the recent developments with Project Connect is that Capital Metro and our transportation “experts” are continuing the same pattern government entities have always followed. Somebody at the top gets fixated on an idea, and that becomes the top-down policy for everything to do with transportation. Any thinking outside of the box is strongly discouraged.

When I moved to Austin in 1992, there was a fixation on downtown and all policy was designed to support this. Every bus route had to go downtown, and cross-connections, going around downtown to better connect destinations, and supporting the jobs/growth in the outer ring, were discouraged. This was followed by a series of other fixations — there was a change at the top, and Capital Metro became fixated on rail, going from one plan to another plan. Then came the fixation with the park-and-rides, and the Domain, and moving people from one activity node to another activity node (remember those days?). Then the fixation switched back to moving people to downtown. Again.

Now we have Project Connect, and the latest fixation is with bus rapid transit (BRT) and New Urbanism. New Urbanism will magically create a boom of jobs and housing east of I-35 very, very soon. BRT is the magic pixie dust that City Council has been looking for to fix all our woes. And all this is great — until 2015 when the new City Council takes over and another idea is put forward to be the new magic pill.

The problems though, are the same.

• North Lamar/Guadalupe, the backbone of our city, is congested and constrained.

• The outer ring of neighborhoods don’t want to go to downtown, they want to go to their jobs and make cross-connections.

• The other cities in Central Texas need to get people into Austin, in a cost-effective way that won’t put a too high burden on them, because they are struggling to balance their growth needs with a tax base that just isn’t big enough yet.

• Large employers are not being held responsible for assisting with transportation solutions, such as providing shuttles and park and ride space, scheduling shifts away from peak times, flexing workers to work from home/remote offices, etc.

• The high-tech/IT jobs at the north end need more mixed transportation, and most of that transportation need is east-west.

• Many service workers are living either east of I-35 or moving to outlying communities because of the lack of affordable housing, and these populations need better transportation to get to their jobs, which again, are usually not downtown.

• We have huge gaps in how we are serving student populations outside of UT. We have absolutely no idea what the students at our vocational and smaller colleges need in the way of transportation because nobody has asked. ACC’s idea — to rotate campus populations in and out of Highland, so they can close and remodel other campuses — is both brilliant, and a transportation nightmare waiting for a place to happen.

• We are a city of small businesses, but we have barely cracked the shell with what this population needs. 80% of the city works for small business. Think about that — we don’t honestly know where 80% of our workers want to go, transportation-wise. The only study I know of that touches on this issue is the 2012 transportation study by Austin Chamber of Commerce.

• We must connect the urban core in North Austin to the urban core downtown, while figuring out a better way to shuttle people in and out of both of these cores.

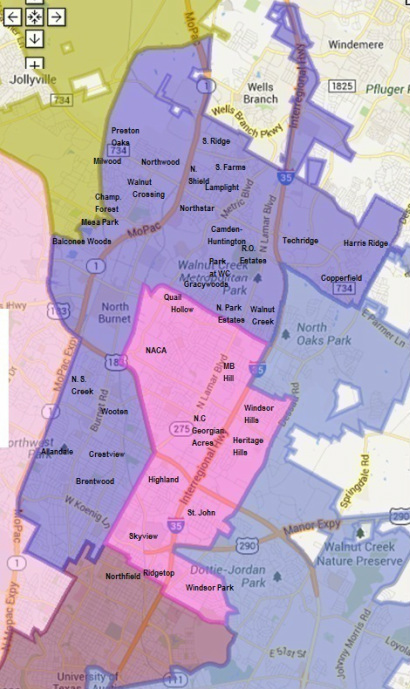

Major North Austin neighborhoods. Map: LoveNorthAustin.com.

I think Scott Morris (Central Austin Community Development Corporation) and Lyndon Henry (Light Rail Now Project) have made a good start — pick the spine, explore if we can fix it with rail or not, and then maybe we can use the coalition we have built to begin to address these other issues.

Capital Metro and CAMPO and the rest are never going to get their act together, people, because they are too busy worrying about the latest directive from the top. So it’s up to us to fix the mess they have made.

Posted in Bus rapid transit (BRT), Bus upgraded transit (BUT), Guadalupe-Lamar corridor, Light rail transit (LRT), Mary Rudig's postings, MetroRapid bus service, Project Connect planning issues, Public involvement process, Regional planning issues, Urban Rail | Tagged Austin Texas, bus rapid transit, bus upgraded transit, coa plan, Lamar-Guadalupe, light rail transit, LRT, Project Connect, public involvement, regional planning, urban rail | Leave a Comment »

Contradicting local official claims, FTA says it “would consider request” for urban rail on North Lamar

1 February 2014

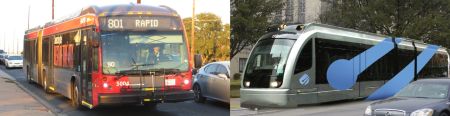

MetroRapid bus (left) and simulation of urban rail (right). Actual FTA view expresses openness to consider replacing MetroRapid service with urban rail in North Lamar corridor. Photo: L. Henry; simulation: COA.

♦

On December 12th, in the course of a contentious meeting, the Austin City Council endorsed Project Connect’s recommendation to pursue “high-capacity transit” in East Riverside and a narrow swath of area mostly northeast of the UT campus, dubbed the “Highland sub-corridor”. (See City Council to Central Austin: Drop Dead.) Present at this meeting was a long queue of critics of the proposal, and proponents of an alternative urban rail route in the “backbone” West Campus-Guadalupe-Lavaca corridor.

Over previous months, Project Connect and its partisans had repeatedly insisted that Capital Metro’s new MetroRapid bus service in the Guadalupe-Lamar corridor – because it was funded by the Federal Transit Administration (FTA) – was an impenetrable barrier to urban rail. In recent days, the argument had intensified, with solemn declarations that even raising the issue of replacing MetroRapid bus with urban rail might so incense FTA that all future federal funding could be jeopardized.

Thus, in this context, earlier in the December 12th Council meeting, anticipating a barrage of criticism over the rejection of the Guadalupe-Lamar corridor, Councilman Mike Martinez (also chairman of Capital Metro) took the opportunity to make a special announcement, evidently intended to steal a march on Guadalupe-Lamar proponents. Word from the FTA had just come in, he intoned, that the agency considered Metro Rapid an absolutely “permanent” investment, and therefore a daunting obstacle to its replacement by rail.

From the City of Austin transcript, the following are Councilman Martinez’s remarks (for readability, edited for spelling, grammar, and punctuation):

I wanted to read a response from FTA that Capital Metro received this afternoon in a meeting with them in Fort Worth. This is an FTA official that … his response to the question about the high-capacity transit that is already going in, the BRT in the Lamar corridor.

His response was: BRT in the North Lamar corridor is a priority transit project. The project was supported by the region through CAMPO. Capital Metro and FTA signed a contract to this effect. FTA sees their investment as permanent.

It is important to consider that there are many demands for federal funds on new starts and small starts [projects]. and FTA made a permanent investment in this [corridor]. If Capital Metro were to come back to FTA and indicate there is a change in priorities or new need in this corridor, Capital Metro, CAMPO and the community would need to go through the entire planning process again to show that urban rail is the highest priority for this corridor.

That to me is a pretty definitive statement from FTA that it would be difficult, if not impossible, to go back through the process and receive new start money in that corridor. They view the current investment as permanent.

City of Austin transcript excerpt with Councilmember Mike Martinez’s Dec. 12th remarks on FTA, MetroRapid, and urban rail for North Lamar. Screenshot: L. Henry.

While the FTA statement, as read orally, seemed less of a definitive and absolute rejection of an urban rail alternative in the Lamar corridor than Councilman Martinez portrayed it, as it turned out, further examination or evaluation of the statement was not immediately possible because a printed copy was not made available to the public for scrutiny. Instead, it took a Public Information Request by Scott Morris of the Central Austin Community Development Corporation, and over 40 days, before the actual FTA statement was made available, in the original form provided to Councilman Martinez.

The FTA’s views, as communicated orally to Capital Metro’s representative Ken Cartwright, are summarized by Capital Metro in an internal document available by download from ARN. As this document indicates, Capital Metro raised the issue: “We have been approached about the possibility of putting an urban rail investment in the North Lamar corridor where we already have the BRT investment.”

FTA’s oral (“verbal”) response is summarized:

The Austin community decided that bus rapid transit in the North Lamar corridor was a priority and the next need. The project was supported by the region through CAMPO. Capital Metro and FTA signed a contract to this effect. FTA sees their investments as permanent. However, if the Austin community were to come back to FTA and indicate that there has been a change in priorities or a new need in this corridor, FTA would consider the request. Before making this request, Capital Metro and the community would need to go through the entire planning process again to show that urban rail is the highest priority in this corridor. It is important to consider that there are many demands on federal funds for New Starts and Small Starts projects, and FTA has already made a permanent investment in this corridor.

Of particular interest is FTA’s assurance that “FTA would consider the request” for urban rail if Capital Metro and the Austin community were able “to show that urban rail is the highest priority in this corridor.”

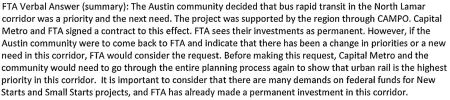

FTA’s actual statement, summarized in CMTA memo provided to Councilmember Martinez. Screenshot from PDF by L. Henry.

Clearly, the FTA’s actual statement on the issue of replacing MetroRapid service with urban rail is considerably more encouraging than the interpretation verbalized by Councilmember Martinez during the highly polemical Dec. 12th City Council debate on rejecting the Guadalupe-Lamar corridor and endorsing Project Connect’s recommendation for a less centrally located route for “high-capacity transit”. This basically corroborates the position expressed by Austin Rail Now.

See:

• MetroRapid bus service should be a precursor to urban rail, not an obstacle!

• Why the MetroRapid bus project currently is NOT an obstacle to urban rail in Guadalupe-Lamar

Bottom line: FTA’s actual statement offers a far more propitious prospect for FTA support of urban rail in this crucial core-city corridor.

Posted in Alternative Urban Rail Plan, Bus rapid transit (BRT), Bus upgraded transit (BUT), Federal Transit Administration issues, Guadalupe-Lamar corridor, MetroRapid bus service, Project Connect planning issues, Urban Rail | Tagged alternative plan, Austin Texas, bus rapid transit, bus upgraded transit, federal transit administration, Lamar-Guadalupe, light rail transit, metrorapid bus, Project Connect, urban rail | 6 Comments »

Baker: What’s behind the switch from urban rail to “BRT”?

24 January 2014

Roger Baker speaks to CAMPO committee, 14 Nov, 2011. Screengrab from YouTube video by Winter Patriot.

♦

Under the leadership of Kyle Keahey, designated in early 2013 as Urban Rail Lead, Project Connect’s former “urban rail” planning has morphed into “high-capacity-transit” planning — apparently moving away from urban rail and toward embracing so-called “bus rapid transit” (“BRT”) as its new mode du jour. Represented by Capital Metro’s new MetroRapid bus operation, the newly favored “BRT” is in reality merely a version of ordinary limited-stop bus service modestly upgraded with extra features like traffic signal prioritization, nicer stops, nicer and larger buses with amenities like Wi-Fi … but it’s not rapid transit. (And may even represent an overall degradation of service in the corridor.) See: Why MetroRapid bus service is NOT “bus rapid transit”.

In this commentary, Roger Baker provides a perspective of background and analysis helping explain why Project Connect, the City of Austin, and Capital Metro seem to be now leading Austin’s rail planning way off the rails and not merely into a ditch, but over a cliff.

By Roger Baker

Austin has persistently lacked a strong progressive populist voice, like a crusading newspaper, willing to dig in and take sides against the prevailing business interests. Even though Austin is liberal compared to Texas, we have an unprincipled Democratic mayor willing to make Toronto’s discredited right-wing mayor Rob Ford an honorary citizen, and equally willing to cut sleazy deals with local business interests tied to certain favorite rail alignments and other official projects.

At the top of state politics, we have Gov. Rick Perry’s climate change deniers and transportation cronies running TxDOT, trying to attract cheap-labor jobs, and to maintain profitable suburban sprawl development, which is creating huge budget shortfalls at TxDOT.

The proceeds from land development as usual are disappearing into the Hip Pocket National Bank.

If we had adult supervision and rational enforcement of sound transit planning on the federal level, coming from the Federal Highway Administration (FHWA) and Federal Transit Administration (FTA), we might be in good shape. But what mid-level federal officials are willing to lose their jobs by crossing the Republicans who run our state for the benefit of the landed gentry?

Austin is also facing a water crisis, likely even more serious than California’s, since Austin’s water comes from now bone dry West Texas. Our daily paper has admitted that we face a water crisis, but without ever mentioning global warming or climate change.

Given all this, special-interest-oriented light rail planning tends to prevail, and the public doesn’t have easy media access to good analysis of rail corridor alternatives.

A likely reason that Austin transportation planners are now redirecting their focus toward BRT instead of rail, is that the special interests involved have run voter polls and see that an urban rail election (required to approve local bond funding) is likely to fail, and they are hedging their bets. Five years from now maybe average folks will get frustrated enough with Austin’s already severe congestion to be broadly supportive of rail, but for now an election might not succeed. Also, our rail-hating opponents are aligned with the Texas road lobby who want roads to complement the current Austin growth boom.

Our six-county MPO, CAMPO, is doing a $32 billion transportation plan that would put 70% of our year 2040 population growth (supposedly doubled by then) in the five counties ringing Travis County, the county which includes Austin. This is like a prescription for an extreme suburban sprawl land use future, which by its nature is road-dependent low-density development that can’t be served efficiently by transit.

This plan can’t work, but the idea is to get federal approval to channel our shrinking fuel tax revenues toward roads to serve sprawl development, before the shortcomings become apparent.

Posted in Bus rapid transit (BRT), Bus upgraded transit (BUT), Light rail transit (LRT), MetroRapid bus service, Project Connect planning issues, Regional planning issues, Roger Baker's postings, Urban Rail | Tagged Austin Texas, bus rapid transit, bus upgraded transit, campo, light rail transit, metrorapid bus, Project Connect, regional planning | Leave a Comment »

Bus paveways on Guadalupe-Lamar — Project Connect’s “elephant in the room”

17 December 2013

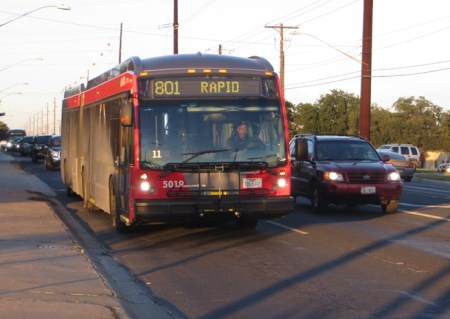

MetroRapid bus, southbound on N. Lamar, nears Koenig Lane during testing on Dec. 10th. By dumping urban rail for this corridor, Project Connect would be free to proceed with plan to install specially paved bus lanes instead of rails. Photo: L. Henry.

♦

By Dave Dobbs

The Elephant in the Room within the Project Connect (COA) urban rail plan (first to Mueller via East Campus, etc. and then out the East Riverside Corridor) is the official proposal to build 40% to 50% dedicated bus lanes, roughly 15-18 miles, within the 37-mile MetroRapid system. This $500 million expenditure appears as a near-term (within 10 years) investment, 80% of which would come from the Federal Transit Administration. Lyndon Henry and I have documented this and explained how it might work in an October 18th article entitled No urban rail on Guadalupe-Lamar? Then get ready for bus lanes….

When I spoke with Project Connect’s Scott Gross about the nature of this a few weeks ago, he said that the dedicated bus lane plan was one that included both right-of-way acquisition and exclusive bus lanes. The math here says that these lanes would be far more extensive than paint-on-paving such as we are about to see on Guadalupe and Lavaca between MLK and Cesar Chavez, 1.4 miles at a cost of $370,000.

Here’s the math …

$500,000,000 ÷ 18 miles = $27.8 million ÷ 2 lanes = $13.9 million per lane-mile

This figure points to a heavy-duty reinforced concrete bus lane in each direction, 18 inches thick, similar to the bus pads at bus stops we see along major bus routes. This would require tearing up the street as severely as a light rail installation would, with all the other utility improvements therein that might be accomplished at the same time.

While my cost-per-lane mile is a simple mathematical one, the result is consistent with what Ben Wear reports for building SH-130, 90 miles from Georgetown to Sequin, for $2.9 billion, or about $8 million a lane-mile. Construction costs in the middle of a very congested street, e.g., South Congress or North Lamar, would be significantly higher than a highway over farmland. That and ROW acquisition costs could easily account for $5.9 million dollars of difference.

These bus lanes, planned in the next decade, would definitely be an obstacle to further FTA investment for 20 to 30 years wherever they are installed. The question we ought to be asking is: What kind of “high capacity transit” do we want on our heaviest-traveled streets?

Posted in Bus rapid transit (BRT), Bus upgraded transit (BUT), Dave Dobbs's postings, Guadalupe-Lamar corridor, Light rail transit (LRT), MetroRapid bus service, Project Connect planning issues, Transit priority lanes, Urban Rail | Tagged alternative plan, Austin Texas, bus rapid transit, bus upgraded transit, Lamar-Guadalupe, light rail transit, metrorapid bus, Project Connect, reserved lanes, urban rail | Leave a Comment »

Why the MetroRapid bus project currently is NOT an obstacle to urban rail in Guadalupe-Lamar

19 October 2013

New MetroRapid buses, representing about 53% of total project cost, could readily be redeployed to other routes or new premium-bus services. In the meantime, MetroRapid service on Guadalupe-Lamar could be re-purposed and presented as precursor to urban rail. (Photo: Filipa Rodrigues, KUT News)

♦

by Lyndon Henry

The question of which route to choose for an initial urban rail line — the officially preferred downtown-East Campus-Mueller plan or the Guadalupe-Lamar (G-L) plan — is linked to the related issue of the $47.6 million MetroRapid bus project currently under way in this and other corridors and due to open for service in 2014. However, as this blog has noted, as currently intended, designed, and funded, MetroRapid — 80% funded from a $37.6 million grant under the Small Starts program of the Federal Transit Administration (FTA) — is about as minimalist as a bus upgrade project can get, involving little more than the following:

• Rolling stock — A fleet of new buses, intended to run almost entirely in mixed general traffic with private motor vehicles. These could readily be redployed into other transit routes or entirely new corridors.

• Upgraded bus stops — Mostly modular in design (i.e., shelters, benches, etc. could be relocated to other locations). These will be equipped with digital cellular-based schedule information systems that are also modular.

• Downtown transit priority lanes — A project to install these (i.e., restripe a lane on each of Guadalupe and Lavaca St. and relocate bus stops) is currently under way. However, as we noted in a previous posting (referring to Portland as a model for transit priority lanes),

there are legitimate questions as to whether these two lanes could simultaneously and effectively accommodate the two MetroRapid bus routes (10-minute headways each) plus all other Capital Metro routes (various headways) as well as urban rail (10-minute headway), all running in both directions.

• Rebranding and marketing — Rechristening limited-stop buses on G-L (a service configuration basically replicating the #101) as a “rapid” service (although the schedule time difference is minuscule to zero). See: Why MetroRapid bus service is NOT “bus rapid transit”.

MetroRapid bus route (black line) planned for the G-L corridor. Red line denotes MetroRapid in the Burnet-South Lamar corridor. (Map: Capital Metro)

Besides all the rebranding and marketing hype, one can legitimately ask: What’s really different about MetroRapid?

• Buses, including limited-stop (even with special branding) have been running in the G-L corridor for decades…

• Capital Metro has repeatedly upgraded both rolling stock and bus stop facilities using federal grant funding…

You could say … Well, there are those downtown transit priority lanes. But Capital Metro and City of Austin planners have long intended to use those also for urban rail! As we hinted in the article on Portland cited above, crowding all downtown bus operations plus MetroRapid plus urban rail into those two lanes does seem to present a problem … but that’s an issue we’ll deal with in a subsequent article. (For urban rail, our remedy is to allocate two more separate lanes.)

So, we have this very minimalist FTA-funded Small Starts bus project (MetroRapid), simply running buses in the street with traffic, and yet, to support their case for Mueller and dismiss the case for urban rail on G-L, some local planners and Project Connect officials have been claiming that the FTA will bar funding of an urban rail project because it would disrupt this small-scale project. Despite the fact that:

• The MetroRapid project was never intended to become an immutable obstacle to rail in the G-L corridor…

• The new buses could be redeployed to other uses — including to urban rail stations in the same streets…

• The modular bus stop facilities (including the cellular information system) could be relocated and redeployed, or simply left in place for use by passengers for the other local bus services…

• MetroRapid in the G-L could simply be re-purposed and rebranded as a precursor to urban rail in the same corridor…

MetroRapid bus stations are minimalist, low-cost, modular (movable). LEFT: Completed station at North Lamar Transit Center (Photo: Downtown Austin Alliance) • RIGHT: Bus stop on Guadalupe at 39th St. being upgraded for MetroRapid (Photo: Mike Dahmus)

The heaviest artillery brought to bear for this has not been testimony from any FTA official, nor FTA policies, but a major Washington lobbyist, hired by the City of Austin, and brought to a work session of the Austin City Council in May 2012 to proclaim that the MetroRapid project represents a barrier to rail in the G-L corridor for the next 20 years! (His opinion has subsequently been repeatedly cited as evidence to support the “MetroRapid barrier” contention.)

It’s legitimate to ask: On what basis, and with what actual evidence, are these claims made? Where have other major rail investments been denied because of this supposed justification? Where has FTA explicitly stated that they resolutely forbid altering a portion of an FTA-funded project and substituting a different project for that section prior to the fulfillment of a defined “minimum life cycle”?

The Official (City + Project Connect) position might as well be: We’re already running buses in this corridor, so there’s no role for rail. That, of course, is absurd — existing bus service means you’ve already got well-established transit ridership, a huge plus for rail.

The same holds true of MetroRapid. The argument that this somehow, in its present form, makes it a daunting barrier to urban rail is also nonsense. (They’d like to make it an authentic barrier, by installing special bus lanes … but that’s another issue — see No urban rail on Guadalupe-Lamar? Then get ready for bus lanes….)

Let’s look at several scenarios:

• Worst-case scenario — Austin would have to reimburse FTA the $38 million grant in full. Not really likely, but possible. If so, this $38 million would be a relatively small penalty added to the cost of a project of hundreds of millions. Actually, FTA would probably deduct it from the grant for any urban rail FFGA (Full Funding Grant Agreement) that would be submitted in the future.

• Acceptable scenario — Austin would be required to reimburse FTA for just the portion from downtown to some point on North Lamar. This seemingly amounts to about 20% or less of the total. It’s also arguable that reimbursement need be based solely on the cost of all or portions the stations and other fixed facilities, but not the rolling stock (which was the preponderance of the grant).

On a route-length basis, the affected G-L portion of the MetroRapid project represents about 20% of the total length. Rolling stock procurement represents about 53% of the total project cost, fixed facilities about 47%. So altogether Austin would be looking at reimbursing 20% X 47% X $37.6 million (FTA grant), which equals … about $3.5 million. And that’s assuming that FTA would not credit the city for re-purposing and re-using these fixed facilities for urban rail or other bus services.

• Best-case scenario — No reimbursement needed. Instead, Austin would just re-deploy the buses in other corridors (including further north on Lamar), and be authorized to relocate fixed facilities or re-purpose them (e.g., the traffic-signal-preemption systems would simply be reconfigured for the rail system).

Also note that FTA is accustomed to changes in FFGAs and other contractual elements all the time and doesn’t just blacklist the agency when that happens. Remember — we’d be dealing with just a portion of this total project, and a small portion of just a very small project at that. So we’re not suggesting here a total cancellation of the entire MetroRapid contract.

In dealing with FTA, there are bureaucratic protocols involved, and the need to adhere to stated rules and regulations, but there’s also a lot of politics. The crucial issue for supporters of urban rail in G-L is to influence overall community desire, intent, and policy to re-focus urban rail into the G-L corridor. Once we accomplish that, there’s a very high probability that local civic and political leadership will climb aboard the reoriented urban rail project and work hard to forge the necessary political clout at the federal level.

Also keep in mind that final design and engineering of any rail system will take a fair chunk of a decade. So the MetroRapid system (which should be re-purposed and re-branded as a precursor to rail) will be operating for several years, anyway, before even construction gets under way. Austin could argue that amortization of fixed facilities (and the “BRT” system) should be accounted for in any reimbursement demanded by FTA.

So how is any of the above a real impediment to installing urban rail properly in the right corridor, i.e., the one which should logically continue to be the city’s highest-priority corridor? The contention that the MetroRapid project represents some kind of insurmountable barrier to moving ahead with urban rail in the G-L corridor seems implausible to the point of absurdity.

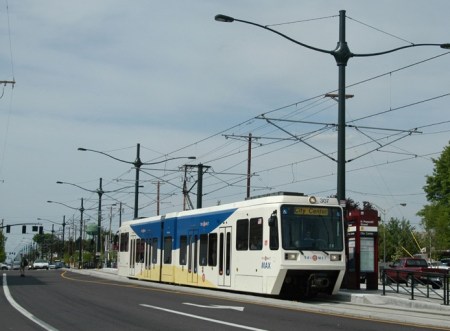

Portland’s light rail transit line on 4-lane Interstate Avenue gives an idea of how urban rail could operate in reservation in G-L corridor. (Photo: Peter Ehrlich)

This posting has been revised since originally published. It originally reported that “a major Washington lobbyist, hired by the City of Austin” had been “brought to a meeting of the Transit Working Group (TWG) in May 2012….” The lobbyist actually presented his remarks to a work session of the Austin City Council.

Posted in Alternative Urban Rail Plan, Bus rapid transit (BRT), Bus upgraded transit (BUT), Light rail transit (LRT), Lyndon Henry's postings, MetroRapid bus service, Transit priority lanes, Urban Rail | 10 Comments »

No urban rail on Guadalupe-Lamar? Then get ready for bus lanes…

18 October 2013

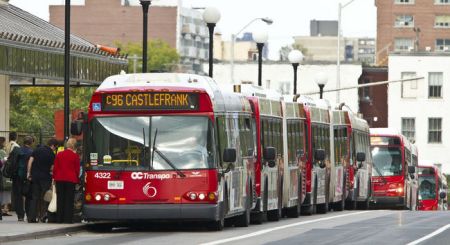

Ottawa’s “BRT” Transitway delivers a “conga line” of buses onto urban streets. Photo: Errol McGhion.

♦

by Dave Dobbs and Lyndon Henry

Which kind of transit — urban rail or buses in special lanes — do you want to see on Guadalupe-Lamar?

Not to decide is to decide.

It’s crucial that Austin’s first urban rail (starter) line be a whopping success. This means it must serve the heart of the city in its heaviest-traffic corridor, with its highest densities and employee and employment concentrations, and its most long-established neighborhoods. The Guadalupe-Lamar corridor offers the ideal alignment for an affordable, cost-effective surface light rail alignment.

It’s also important to understand that if we don’t get light rail transit (LRT) on Guadalupe and North Lamar, we most certainly will get dedicated bus lanes within the next 10 years. A major project to overhaul the corridor by installing infrastructure for battalions of MetroRapid buses is waiting in the wings if urban rail is not implemented. This alternative, not requiring a public vote, would produce a far less efficient, adequate, and attractive system, seriously degrade urban conditions, and result in a less livable environment compared with urban rail.

This package of so-called “Bus Rapid Transit” (“BRT”) projects — whereby MetroRapid buses would enter stretches of dedicated bus lanes, and then merge back and forth, into and out of mixed general traffic — was first raised publicly in a Project Connect/City of Austin Transportation Department presentation made in City Council chambers on 25 May 2012 to the CAMPO Transit Working Group (TWG). Shown below is page 10 of that presentation, with arrows pointing to the relevant information.

Excerpt from Project Connect presentation in May 2012 indicating planned $500 million package for MetroRapid “BRT” facilities, including Guadalupe-Lamar. Graphic: Project Connect.

These dedicated lanes will be built with 80% federal money, will not require an election, will be vetted publicly only at art gallery-style “open houses”, and approved by boards and commissions, the Capital Metro Board, and the Austin City Council, and then they will be built, unless we implement urban rail in the Guadalupe-North Lamar corridor. And keep in mind that — unlike the current minimalist MetroRapid project — this level of hefty physical investment in roadway infrastructure will become a de facto obstacle to any future rail project in the corridor.

These dedicated bus lanes are the official plan as things currently stand.

There are numerous drawbacks with premium buses, and even “BRT”, compared with LRT. Just to cite a couple:

• LRT on average is significantly more cost-effective than bus operations.

• Buses don’t attract nearly as much ridership as LRT, but as ridership starts to reach higher volumes, bus traffic and overwhelming “conga lines” of buses cause more problems … plus more queues of riders start to slow operations.

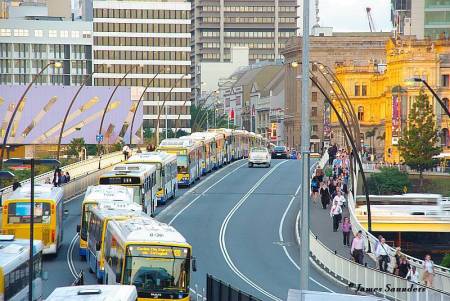

Another bus "conga line" leaving downtown Brisbane, Australia to enter busway.

Brisbane, Australia: More “conga lines” of buses travel on reserved lanes between the city’s downtown and a busway. Photo: James Saunders.

If you would prefer urban rail instead of a major bus lane project in Guadalupe-Lamar, it’s essential to speak up and act. Let neighborhood groups and other community organizations know what official plans have in store for this corridor. Sign petitions being circulated to support urban rail on G-L. Communicate to Project Connect and members of Austin City Council that you want to ride urban rail on Guadalupe-Lamar, running in reserved tracks, not just a souped-up bus service weaving in and out of special lanes.

Houston's MetroRail demonstrates that LRT can attract and carry more passengers faster, more effectitly and safely, more cost-effectively than high-capacity bus operations. Photo: Peter Ehrlich.

Houston’s MetroRail demonstrates that LRT can attract and carry more passengers faster, more effectively and safely, and more cost-effectively than high-capacity bus operations. Photo: Peter Ehrlich.

Posted in Alternative Urban Rail Plan, Bus rapid transit (BRT), Bus upgraded transit (BUT), Dave Dobbs's postings, Guadalupe-Lamar corridor, Lyndon Henry's postings, MetroRapid bus service, Transit priority lanes, Urban Rail | Tagged alternative plan, Austin Texas, bus rapid transit, bus upgraded transit, Lamar-Guadalupe, light rail transit, metrorapid bus, Project Connect, reserved lanes, Urban rail transit | 6 Comments »

Why MetroRapid bus service is NOT “bus rapid transit”

22 September 2013

Capital Metro MetroRapid bus. Photo: CMTA blog.

♦

Capital Metro’s MetroRapid bus project received its $38 million of Federal Transit Administration (FTA) funding through its designation as a “Bus Rapid Transit” project under the FTA’s Small Starts program. But calling a bus operation “rapid transit” that will run predominantly in mixed motor vehicle traffic seems either rather fraudulent, self-deceptive, or a branding effort that has descended to the ridiculous. Yet some local officials, planners, and enthusiasts of the officially promoted downtown-to-Mueller Urban Rail route have been vigorously singing the praises of MetroRapid as a viable and equivalent substitute for light rail transit (LRT) in the Guadalupe-Lamar corridor.

Even LRT, which typically runs entirely or predominantly in reserved or exclusive alignments, and (for comparable levels of service) is faster than so-called “BRT”, isn’t called “rapid transit”.

The un-rapid drawbacks of CapMetro’s MetroRapid have been cited by other analyses. For example, Austin American-Statesman transportation reporter Ben Wear, in a February 2012 article titled MetroRapid bus service not so rapid, not expected until 2014, noted:

Despite an agency goal of offering time savings of 10 percent, in hopes of attracting more people to buses, the two lines would mostly offer minimal time savings, according to a Capital Metro presentation on the MetroRapid bus system, now scheduled to start operating in 2014.

In one case, a MetroRapid bus running from Howard Lane in North Austin to downtown would make the trip in 47 minutes — the same as an existing limited-stop bus that runs the same route. Trips between South Austin and downtown on that same line would offer time savings of just two to three minutes.

Community public transit activist Mike Dahmus, in a blog entry titled Rapid Bus Ain’t Rapid, 2011 Confirmation, provided schedule evidence from CapMetro’s own website indicating that travel time differentials between the proposed Route 801 service (North Lamar-Guadalupe-South Congress) for atypically long trip lengths were minimal — time savings of 0 to perhaps 3 minutes even for such unusually lengthy trips as journeys between far-flung transit centers.

And in another article titled Rapid [sic] Bus Fact Check: Will It Improve Frequency? Dahmus offered a cogent argument that headways (thus waiting times for passengers) would be increased, not decreased, with MetroRapid service in the Route 801 corridor. Assuming the most likely operating scenario, Dahmus figures the number of scheduled bus trips in an average hour would be reduced from 9 to 8 — i.e., an increase in service headways and concomitant increase in waiting time for passengers.

Wikipedia provides a useful definition/description of Rapid Transit:

A rapid transit system is a public transport system in an urban area with high capacity, high frequency not needing timetables, is fast and is segregated from other traffic…. Operating on an exclusive right of way, rapid transit systems are typically grade separated and located either in underground tunnels (subways) or elevated above street level (elevated transit line). … Modern services on rapid transit systems are provided on designated lines between stations typically using electric multiple units on rail tracks, although some systems use guided rubber tyres, magnetic levitation, or monorail.

Numbered citations were omitted from the quotation above, but the Wikipedia article’s references included:

• “Rapid transit”. Merriam-Webster.
• “Metro”. International Association of Public Transport.
• “Glossary of Transit Terminology”. American Public Transportation Association.
• “Rapid Transit”. Encyclopedia Britannica.

In the USA, the term “rail rapid transit” has a de facto meaning of such an urban electric metro or subway/elevated system, running entirely (with rare exceptions) on its own, exclusive right-of-way, with no grade crossings or other interference with street traffic or pedestrians.

It would seem reasonable that the public, political and civic leaders, and transportation professionals should hold “bus rapid transit” to the same standard. Certainly, “bus rapid transit” should not be applied to bus operations running merely in reserved traffic lanes, or in and out of mixed and reserved or exclusive lanes, etc. — yet these are precisely the kinds of operating applications that FTA, and several major BRT advocacy organizations, have been blithely characterizing as “BRT”.

To call a modestly enhanced bus operation “rapid transit” while denying this designation to a streetcar/light rail operation with much or most of its alignment in exclusive or reserved ROW seems like branding gone haywire — particularly so when the buses depart from the totally exclusive alignment and meander on routes in mixed traffic. Why should a bus coming down the street, waiting in traffic jams, etc., be called “rapid transit”? This would seem to make a mockery of the term.

In effect, the term Bus Rapid Transit is being applied to service/capacity mode configurations that are significantly inferior not just to Rail Rapid Transit but to Light Rail Transit — and that would seem highly misleading, especially to the general public. For these modestly improved bus services, a term such as Bus Premium Transit would appear more accurate and appropriate.

The section below provides a brief photo-summary distinguishing among bona fide rail rapid transit and bus rapid transit, and Bus Premium Transit operations erroneously (and widely) characterized as “BRT”.

♦ This is rail rapid transit (RRT)

Baltimore Metro. Photo: Doug Grotjahn.

Miami MetroRail. Photo: L. Henry.

♦ This is bus rapid transit (BRT)

Miami-Dade County Busway. Photo: Jon Bell.

Brisbane (Australia) busway. Photo: That Jesus Bloke.

Boston Waterfront Silver Line. Photo: Massachusetts Government blog.

♦ This is NOT “bus rapid transit”

Los Angeles MetroRapid Route 720. Photo: Sopas EJ.

Kansas City MAX premium bus service (branded as “BRT”). Photo: Metro Jacksonville.

Bottom Line: With MetroRapid bus service, Capital Metro does seem to be modestly upgrading current bus service in the Guadalupe-Lamar corridor and elsewhere with spiffier station facilities and newer buses — improvements that most bus riders, and probably the public in general, would welcome.

But an acceptable substitute for urban rail … it ain’t.

Posted in Baltimore, Boston, Bus rapid transit (BRT), Bus upgraded transit (BUT), Light rail transit (LRT), Los Angeles, MetroRapid bus service, Miami, Rail rapid transit, Sydney | Tagged Austin, baltimore, boston, bus rapid transit, bus upgraded transit, light rail transit, los angeles, metrorapid bus, miami, sydney, urban rail | 1 Comment »

MetroRapid bus service should be a precursor to urban rail, not an obstacle!

18 September 2013

View of part of MetroRapid fleet.

♦

Some local officials, favoring the City’s long-preferred Urban Rail plan from downtown through the UT East Campus to the Mueller development site, have been presenting Capital Metro’s MetroRapid juiced-up-bus-service project as a barrier to alternative proposals for implementing urban rail in the Guadalupe-Lamar (G-L) corridor.

As Austin Rail Now will discuss in subsequent analyses, this argument is fatuous and fallacious. Instead, MetroRapid can and should be re-purposed and re-branded as a precursor to urban rail, not a competitor and obstacle.

This concept of MetroRapid as a precursor to rail was first presented in a 27 April 2012 commentary by Lyndon Henry (technical consultant for Light Rail Now) to the Transit Working Group:

Rapid Bus can be a precursor to Urban Rail in Lamar-Guadalupe corridor!

Here are excerpts (adapted for Webpage format) from that commentary that may be useful to the discussion of such a possible role for MetroRapid as a precursor to urban rail (using light rail transit technology) in the G-L corridor:

♦ Useful reference: BRT as a Precursor of LRT? (TRB conference paper, 2009)

Paper presented by Dave Dobbs and [Lyndon Henry] to 2009 Joint International Light Rail Conference sponsored by Transportation Research Board [TRB] provides research and guidelines for BRT as rail precursor:

Cover of TRB conference proceedings.

Title and author lines from published paper.

[Link to proceedings]

http://onlinepubs.trb.org/onlinepubs/circulars/ec145.pdf

♦ Examples where “BRT” has been precursor to rail – including with FTA approval

Various U.S. examples exist where both technically and policy-wise, a RapidBus or BRT-type system can function as a precursor to rail transit service – and with Federal Transit Administration (FTA) approval!

• Dallas – BRT-like express bus service, operated by Dallas Area Rapid Transit (DART) on North Central Expressway, served as a precursor to DART’s LRT extension to Plano.
• Miami – Miami-Dade Busway has been serving as precursor to extensions of MetroRail rapid transit.
• Los Angeles – Wilshire Boulevard MetroRapid service, operated by Los Angeles County Metropolitan Transportation Authority (MTA), has served as precursor to extension of MTA’s rail rapid transit metro system, a project now under way.
• Seattle – In Downtown Seattle Transit Tunnel, BRT-type bus service functioned as precursor to Link light rail (now operating jointly with buses – see photos below).

♦ In 2009, Capital Metro’s MetroRapid was envisioned as precursor to rail

As recently as 2009, MetroRapid project was being designed for eventual conversion to light rail:

Excerpt from section of paper.

♦ Conclusion: BRT or RapidBus must be originally designed as light rail precursor!

Paper concludes that best-practices approach to plan for BRT or RapidBus as precursor to rail is to design it for eventual conversion from the start. This means keeping infrastructure investment minimal and designing for modularity (i.e., designing station components, communications, etc. so they can be easily relocated or reconfigured for the rail mode during conversion).

Excerpt from Conclusion of paper.

If the transit agency can demonstrate that the BRT or RapidBus investment won’t be lost, but can be upgraded into a higher and more effective use (e.g., Urban Rail), FTA has approved such conversion.

Posted in Alternative Urban Rail Plan, Bus rapid transit (BRT), Light rail transit (LRT), MetroRapid bus service, Urban Rail | Tagged alternative plan, Austin, bus rapid transit, light rail transit, metrorapid bus, precursor, urban rail | Leave a Comment »

	Skip Cameron on Downtown Light Rail Plan Needs…
	Skip on Plan now for conversion/inclus…
	Education Transforma… on Here’s what a real publi…
	JOHN T COKOS on Success at last! Austin votes…
	Haveacow on Success at last! Austin votes…
	billbolton on Success at last! Austin votes…
	Seth H. Bramsonsb on Success at last! Austin votes…
	Skip Cameron on Success at last! Austin votes…
	Seth H. Bramson on Success at last! Austin votes…
	Skip Cameron on Success at last! Austin votes…

Archive for the ‘MetroRapid bus service’ Category

Dave Dobbs is publisher of LightRailNow.com. This commentary has been adapted and expanded from original private Email comments.

Context of cumulative evidence

Concrete vs. painted lanes

“BRT” funding and implementation options

“Highland” issues

Core area issues

“East Riverside” issues

Mary Rudig is a Gracy Woods Neighborhood Association coach and editor of the North Austin Community Newsletter.

In this commentary, Roger Baker provides a perspective of background and analysis helping explain why Project Connect, the City of Austin, and Capital Metro seem to be now leading Austin’s rail planning way off the rails and not merely into a ditch, but over a cliff.

♦ This is rail rapid transit (RRT)

♦ This is bus rapid transit (BRT)

♦ This is NOT “bus rapid transit”

♦ Useful reference: BRT as a Precursor of LRT? (TRB conference paper, 2009)

♦ Examples where “BRT” has been precursor to rail – including with FTA approval

♦ In 2009, Capital Metro’s MetroRapid was envisioned as precursor to rail

♦ Conclusion: BRT or RapidBus must be originally designed as light rail precursor!

What We’re Seeking

Pages

Recent Posts

Recent Comments

Top Posts & Pages

Archives

Categories

Tag Cloud

Blogroll

Transport & urban links

Follow Blog via Email

Meta

Site Views

Spam Blocked

Creative Commons
